日成BLN型尼龍電纜防水接頭

產品材質:優質尼龍66,橡膠:硅橡膠
螺牙規格:M/PG/NPT/G(PF) 產品認證:CE,EX,ROHS
工作溫度:-50°C至150°C 防護等級:IP68
使用方法:將本體固定機板,旋緊迫緊頭即可固定電纜
新品開發中
目錄頁碼：A38頁

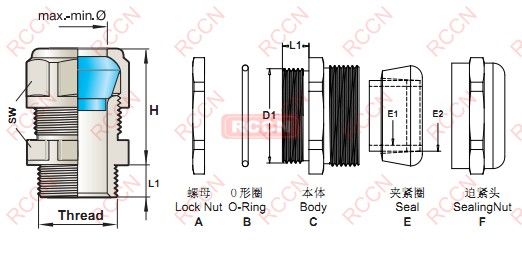

型號Item No.	適用電纜 Cable Range Φ	內層橡膠 with inlet E1	外層橡膠 without inlet E2	螺紋長度 Thread Length L1	配套螺母上限板厚 +Nut Max platethick	接合長度 Joint Length H	板手 Spanner SW A/F	包裝 Std.Pkg. pcs
公制螺紋 M
BLN-M12×1.5-8	2-8	2-5	5-8	8	≤4.5	24	17	100PCS
BLN-M16×1.5-11	4-11	4-7	7-11	8	≤4.5	29	20
BLN-M18×1.5-11	4-11	4-7	7-11	8	≤4.5	29	20
BLN-M20×1.5-14	5-14	5-9	9-14	8	≤4.5	33	24
BLN-M22×1.5-14	5-14	5-9	9-14	8	≤4.5	33	24
BLN-M24×1.5-20	11-20	11-16	16-20	9	≤4.5	35	30
BLN-M25×1.5-20	11-20	11-16	16-20	9	≤4.5	35	30
BLN-M27×1.5-20	11-20	11-16	16-20	9	≤4.5	35	30
BLN-M30×2.0-25	15-25	15-20	20-25	11	≤5.5	35	36	50PCS
BLN-M32×1.5-25	15-25	15-20	20-25	11	≤5.5	35	36
BLN-M33×2.0-25	15-25	15-20	20-25	11	≤5.5	35	36
BLN-M40×1.5-32	20-32	20-26	26-32	11	≤5.5	37	44
BLN-M50×1.5-42	31-42	31-35	35-42	15	≤9.5	46	58	5PCS
BLN-M63×1.5-54	41-54	41-54	46-54	15	≤9.5	49	68	5PCS
BLN-M72×2.0-65	54-65	54-58	58-65	15	≤9.5	55	81	1PCS
BLN-M75×1.5-65	54-65	54-58	58-65	15	≤9.5	55	81
BLN-M85×1.5-77	65-77	65-70	70-77	15	≤9.5	55	96
BLN-M90×1.5-77	65-77	65-70	70-77	15	≤9.5	55	96
BLN-M12×1.5L-8	2-8	2-5	5-8	15	≤9.5	21	17	100PCS
BLN-M16×1.5L-11	4-11	4-7	7-11	15	≤9.5	25	20
BLN-M18×1.5L-11	4-11	4-7	7-11	15	≤9.5	25	20
BLN-M20×1.5L-14	5-14	5-9	9-4	15	≤9.5	29	24
BLN-M22×1.5L-14	5-14	5-9	9-4	15	≤9.5	29	24
BLN-M24×1.5L-20	11-20	11-16	16-20	15	≤9.5	30	30
BLN-M25×1.5L-20	11-20	11-16	16-20	15	≤9.5	30	30
BLN-M27×1.5L-20	11-20	11-16	16-20	15	≤9.5	30	30
BLN-M30×2.0L-25	15-25	15-20	20-25	15	≤9.5	32	36	50PCS
BLN-M32×1.5L-25	15-25	15-20	20-25	15	≤9.5	32	36
BLN-M33×2.0L-25	15-25	15-20	20-25	1532	≤9.5	32	36
BLN-M40×1.5L-32	20-32	20-26	26-32	15	≤9.5	35	44
德制螺紋 PG
BLN-PG7-8	2-8	2-5	5-8	8	≤4.5	24	17	100PCS
BLN-PG9-11	4-11	4-7	7-11	8	≤4.5	29	20
BLN-PG11-11	4-11	4-7	7-11	8	≤4.5	29	20
BLN-PG13.5-14	5-14	5-9	9-4	8	≤4.5	33	24
BLN-PG16-14	5-14	5-9	9-4	8	≤4.5	33	24
BLN-PG21-20	11-20	11-16	16-20	9	≤4.5	35	30
BLN-PG29-32	20-32	20-26	26-32	11	≤5.5	37	44	50PCS
BLN-PG36-42	31-42	31-35	35-42	15	≤9.5	46	58	5PCS
BLN-PG42-42	31-42	31-35	35-42	15	≤9.5	46	58
BLN-PG48-54	41-54	41-54	46-54	15	≤9.5	49	68
BLN-PG7L-8	2-8	2-5	5-8	15	≤9.5	21	17	100PCS
BLN-PG9L-11	4-11	4-7	7-11	15	≤9.5	25	20
BLN-PG11L-11	4-11	4-7	7-11	15	≤9.5	25	20
BLN-PG13.5L-14	5-14	5-9	9-4	15	≤9.5	29	24
BLN-PG16L-14	5-14	5-9	9-4	15	≤9.5	29	24
BLN-PG21L-20	11-20	11-16	16-20	15	≤9.5	30	30
BLN-PG29L-32	20-32	20-26	26-32	15	≤9.5	35	44	50PCS
美制螺紋 NPT
BLN-NPT1/4-8	2-8	2-5	5-8	8	≤4.5	24	17	100PCS
BLN-NPT3/8-11	4-11	4-7	7-11	8	≤4.5	29	20
BLN-NPT1/2-14	5-14	5-9	9-4	8	≤4.5	33	24
BLN-NPT3/4-20	11-20	11-16	16-20	9	≤4.5	35	30
BLN-NPT1-25	15-25	15-20	20-25	11	≤5.5	35	36	50PCS
BLN-NPT1-1/4-32	20-32	20-26	26-32	11	≤5.5	37	44	50PCS
BLN-NPT1-1/2-42	41-54	41-54	46-54	15	≤9.5	49	68	5PCS
BLN-NPT2-54	54-65	54-58	58-65	15	≤9.5	55	81	1PCS
BLN-NPT2-1/2-65	65-77	65-70	70-77	15	≤9.5	55	96
BLN-NPT3-77	65-77	65-70	70-77	15	≤9.5	55	96
BLN-NPT1/4L-8	2-8	2-5	5-8	15	≤9.5	21	17	100PCS
BLN-NPT3/8L-11	4-11	4-7	7-11	15	≤9.5	25	20
BLN-NPT1/2L-14	5-14	5-9	9-4	15	≤9.5	29	24
BLN-NPT3/4L-20	11-20	11-16	16-20	15	≤9.5	30	30
BLN-NPT1L-25	15-25	15-20	20-25	15	≤9.5	32	36	50PCS
BLN-NPT1-1/4L-32	20-32	20-26	26-32	15	≤9.5	35	44	50PCS
英制螺紋 G
BLN-G1/4-8	2-8	2-5	5-8	8	≤4.5	24	17	100PCS
BLN-G3/8-11	4-11	4-7	7-11	8	≤4.5	29	20
BLN-G1/2-14	5-14	5-9	9-4	8	≤4.5	33	24
BLN-G3/4-20	11-20	11-16	16-20	9	≤4.5	35	30
BLN-G1-25	15-25	15-20	20-25	11	≤5.5	35	36	50PCS
BLN-G1-1/4-32	20-32	20-26	26-32	11	≤5.5	37	44	50PCS
BLN-G1-1/2-42	41-54	41-54	46-54	15	≤9.5	49	68	5PCS
BLN-NPT2-54	54-65	54-58	58-65	15	≤9.5	55	81	1PCS
BLN-G2-1/2-65	65-77	65-70	70-77	15	≤9.5	55	96
BLN-G3-77	65-77	65-70	70-77	15	≤9.5	55	96
BLN-G1/4L-8	2-8	2-5	5-8	15	≤9.5	21	17	100PCS
BLN-G3/8L-11	4-11	4-7	7-11	15	≤9.5	25	20
BLN-G1/2L-14	5-14	5-9	9-4	15	≤9.5	29	24
BLN-G3/4L-20	11-20	11-16	16-20	15	≤9.5	30	30
BLN-GT1L-25	15-25	15-20	20-25	15	≤9.5	32	36	50PCS
BLN-G1-1/4L-32	20-32	20-26	26-32	15	≤9.5	35	44	50PCS
