日成：產品目錄 >>電纜接頭金屬接頭 >>日成DA型加厚金屬防水電纜接頭

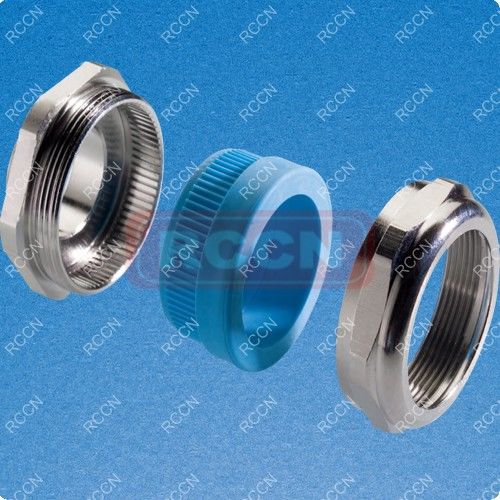

日成DA型加厚金屬防水電纜接頭

產品材質:金屬:黃銅鍍鎳制成,橡膠:TPE
螺牙規格:M/PG/NPT/G(PF) 產品認證:CE,EX,ROHS
工作溫度:-50°C至150°C 防護等級:IP68
使用方法:將本體固定機板,旋緊迫緊頭
即可固定電纜
螺紋標準及開孔數據參考A24頁
目錄頁碼：A39頁

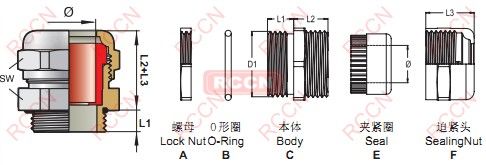

型號Item No.	適用電纜 Cable Range Φ	螺紋長度 Thread Length L1	配套螺母上限板厚 +Nut Max platethick	接合長度 Joint Length L2+L3	板手 Spanner SW A/F	包裝 Std.Pkg. pcs
公制螺紋 M
DA-M12×1.5-6.5	4-6.5	7	≤3.5	20	14/14	100PCS
DA-M12×1.5-8	5-8	7	≤3.5	20	18/18
DA-M12×1.5-10	6-10	7	≤3.5	20	18/18
DA-M16×1.5-11	7-11	7	≤3.5	20	20/20
DA-M16×1.5-13	9-13	7	≤3.5	21	22/22
DA-M18×1.5-13	9-13	7	≤3.5	21	22/22
DA-M18×1.5-16	11-16	7	≤4.5	21	24/24
DA-M20×1.5-16	11-16	8	≤4.5	21	24/24
DA-M20×1.5-18	14-18	8	≤4.5	25	30/30	50PCS
DA-M20×1.5-21	17-21	8	≤4.5	25	30/30
DA-M22×1.5-18	14-18	8	≤4.5	25	30/30
DA-M22×1.5-21	17-21	8	≤4.5	25	30/30
DA-M25×1.5-18	14-18	9	≤4.5	25	30/30
DA-M25×1.5-21	17-21	9	≤4.5	25	30/30
DA-M32×1.5-25	20-25	11	≤5.5	28	40/40	25PCS
DA-M32×1.5-30	25-30	11	≤5.5	28	40/40
DA-M40×1.5-32	27-32	11	≤5.5	28	50/50
DA-M40×1.5-34	29-34	11	≤5.5	28	50/50
DA-M40×1.5-36	32-36	11	≤5.5	28	50/50
DA-M50×1.5-38	33-38	11	≤5.5	30	58/58	1PCS
DA-M50×1.5-40	35-40	11	≤5.5	30	58/58
DA-M63×1.5-45	40-45	15	≤9.5	47	68/68
DA-M63×1.5-50	45-50	15	≤9.5	47	68/68
DA-M63×1.5-55	50-55	15	≤9.5	47	81/81
DA-M63×1.5-58	54-58	15	≤9.5	47	81/81
DA-M72×2.0-47	42-47	15	≤9.5	47	81/81
DA-M72×2.0-52	45-52	15	≤9.5	47	81/81
DA-M72×2.0-55	51-55	15	≤9.5	47	81/81
DA-M72×2.0-58	54-58	15	≤9.5	47	81/81
DA-M72×2.0-47	42-47	15	≤9.5	47	81/81
DA-M72×2.0-52	45-52	15	≤9.5	47	81/81
DA-M72×2.0-55	51-55	15	≤9.5	47	81/81
DA-M72×2.0-58	54-58	15	≤9.5	47	81/81
DA-M80×2.0-57	50-57	15	≤9.5	47	86/86
DA-M80×2.0-64	58-64	15	≤9.5	47	96/96
DA-M80×2.0-70	63-70	15	≤9.5	47	96/96
DA-M88×2.0-57	50-57	15	≤9.5	47	96/96
DA-M88×2.0-64	58-64	15	≤9.5	47	96/96
DA-M88×2.0-70	63-70	15	≤9.5	47	96/96
德制螺紋 PG
DA-PG7-6.5	4-6.5	7	≤3.5	20	14/14	100PCS
DA-PG7-8	5-8	7	≤3.5	20	18/18
DA-PG7-10	6-10	7	≤3.5	20	18/18
DA-PG9-11	7-11	7	≤3.5	20	20/20
DA-PG9-13	9-13	7	≤3.5	21	22/22
DA-PG11-13	9-13	7	≤3.5	21	22/22
DA-PG11-16	11-16	7	≤4.5	21	24/24
DA-PG13.5-16	11-16	8	≤4.5	21	24/24
DA-PG13.5-18	14-18	8	≤4.5	25	30/30	50PCS
DA-PG13.5-21	17-21	8	≤4.5	25	30/30
DA-PG16-18	14-18	8	≤4.5	25	30/30
DA-PG16-21	17-21	8	≤4.5	25	30/30
DA-PG21-18	14-18	9	≤4.5	25	30/30
DA-PG21-21	17-21	9	≤4.5	25	30/30
DA-PG21-25	20-25	11	≤5.5	28	40/40	25PCS
DA-PG21-30	25-30	11	≤5.5	28	40/40
DA-PG29-32	27-32	11	≤5.5	28	50/50
DA-PG29-34	29-34	11	≤5.5	28	50/50
DA-PG29-36	32-36	11	≤5.5	28	50/50
DA-PG36-38	33-38	11	≤5.5	30	58/58	1PCS
DA-PG36-40	35-40	11	≤5.5	30	58/58
DA-PG48-45	40-45	15	≤9.5	47	68/68
DA-PG48-50	45-50	15	≤9.5	47	68/68
DA-PG48-55	50-55	15	≤9.5	47	81/81
DA-PG48-58	54-58	15	≤9.5	47	81/81
美制螺紋 NPT
DA-NPT1/4-6.5	4-6.5	7	≤3.5	20	14/14	100PCS
DA-NPT1/4-8	5-8	7	≤3.5	20	18/18
DA-NPT1/4-10	6-10	7	≤3.5	20	18/18
DA-NPT3/8-11	7-11	7	≤3.5	20	20/20
DA-NPT3/8-13	9-13	7	≤3.5	21	22/22
DA-NPT1/2-16	11-16	8	≤4.5	21	24/24
DA-NPT1/2-18	14-18	8	≤4.5	25	30/30	50PCS
DA-NPT1/2-21	17-21	8	≤4.5	25	30/30
DA-NPT3/4-18	14-18	9	≤4.5	25	30/30
DA-NPT3/4-21	17-21	9	≤4.5	25	30/30
DA-NPT1-25	20-25	11	≤5.5	28	40/40	25PCS
DA-NPT1-30	25-30	11	≤5.5	28	40/40
DA-NPT1-1/4-32	27-32	11	≤5.5	28	50/50
DA-NPT1-1/4-34	29-34	11	≤5.5	28	50/50
DA-NPT1-1/4-36	32-36	11	≤5.5	28	50/50
DA-NPT1-1/2-38	33-38	11	≤5.5	30	58/58	1PCS
DA-NPT1-1/2-40	35-40	11	≤5.5	30	58/58
DA-NPT2-45	40-45	15	≤9.5	47	68/68
DA-NPT2-50	45-50	15	≤9.5	47	68/68
DA-NPT2-55	50-55	15	≤9.5	47	81/81
DA-NPT2-58	54-58	15	≤9.5	47	81/81
DA-NPT2-1/2-47	42-47	15	≤9.5	47	81/81
DA-NPT2-1/2-52	45-52	15	≤9.5	47	81/81
DA-NPT2-1/2-55	51-55	15	≤9.5	47	81/81
DA-NPT2-1/2-58	54-58	15	≤9.5	47	81/81
DA-NPT3-57	50-57	15	≤9.5	47	96/96
DA-NPT3-64	58-64	15	≤9.5	47	96/96
DA-NPT3-70	63-70	15	≤9.5	47	96/96
英制螺紋 G
DA-G1/4-6.5	4-6.5	7	≤3.5	20	14/14	100PCS
DA-G1/4-8	5-8	7	≤3.5	20	18/18
DA-G1/4-10	6-10	7	≤3.5	20	18/18
DA-G3/8-11	7-11	7	≤3.5	20	20/20
DA-G3/8-13	9-13	7	≤3.5	21	22/22
DA-G1/2-16	11-16	8	≤4.5	21	24/24
DA-G1/2-18	14-18	8	≤4.5	25	30/30	50PCS
DA-G1/2-21	17-21	8	≤4.5	25	30/30
DA-G3/4-18	14-18	9	≤4.5	25	30/30
DA-G3/4-21	17-21	9	≤4.5	25	30/30
DA-G1-25	20-25	11	≤5.5	28	40/40	25PCS
DA-G1-28	25-30	11	≤5.5	28	40/40
DA-G1-1/4-32	27-32	11	≤5.5	28	50/50
DA-G1-1/4-34	29-34	11	≤5.5	28	50/50
DA-G1-1/4-36	32-36	11	≤5.5	28	50/50
DA-G1-1/2-38	33-38	11	≤5.5	30	58/58	1PCS
DA-G1-1/2-40	35-40	11	≤5.5	30	58/58
DA-G2-45	40-45	15	≤9.5	47	68/68
DA-G2-50	45-50	15	≤9.5	47	68/68
DA-G2-55	50-55	15	≤9.5	47	81/81
DA-G2-58	54-58	15	≤9.5	47	81/81
DA-G2-1/2-47	42-47	15	≤9.5	47	81/81
DA-G2-1/2-52	45-52	15	≤9.5	47	81/81
DA-G2-1/2-55	51-55	15	≤9.5	47	81/81
DA-G2-1/2-58	54-58	15	≤9.5	47	81/81
DA-G3-64	58-64	15	≤9.5	47	96/96
DA-G3-70	63-70	15	≤9.5	47	96/96
